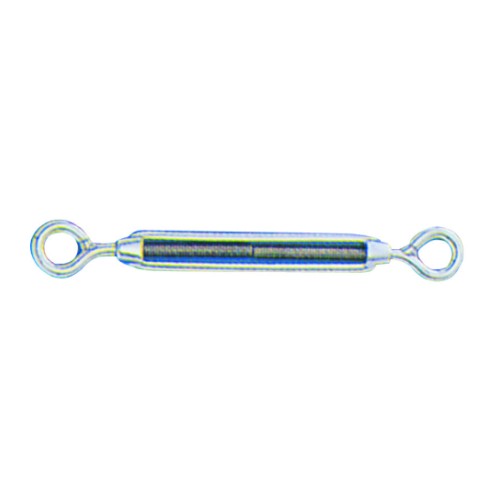

Two-eye rigging screw, 8 mm
Turned rigging screw made of mirror polished AISI 316 stainless steel. Fine finish, sliding threads and generously sized to provide a strong adjusting travel.
Thread D1
L
L1
A
Work load
,
4 MA
60 mm
100 mm
7 mm
- kg
,...
Loe rohkem...
Toote andmed
| Üldandmed | |
|---|---|
| Manufacturer | Osculati |
| Tootekood | 03100416 |
| Tootja kood | 07.193.08 |
| Kategooria | Turnbuckles |
Product description
Turned rigging screw made of mirror polished AISI 316 stainless steel. Fine finish, sliding threads and generously sized to provide a strong adjusting travel.

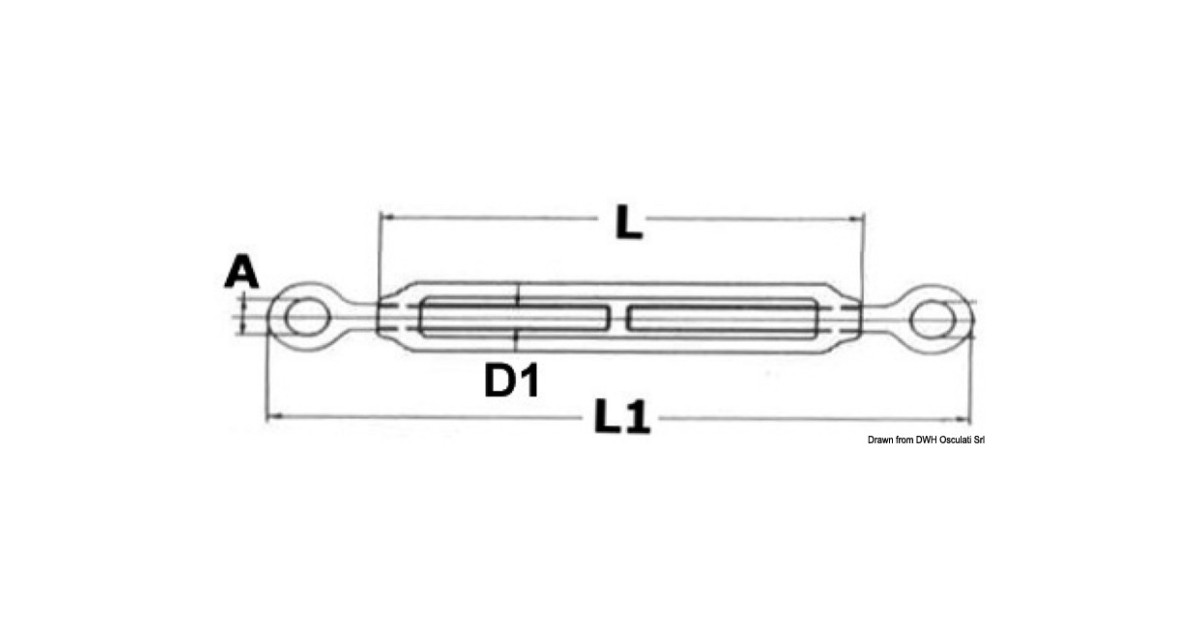

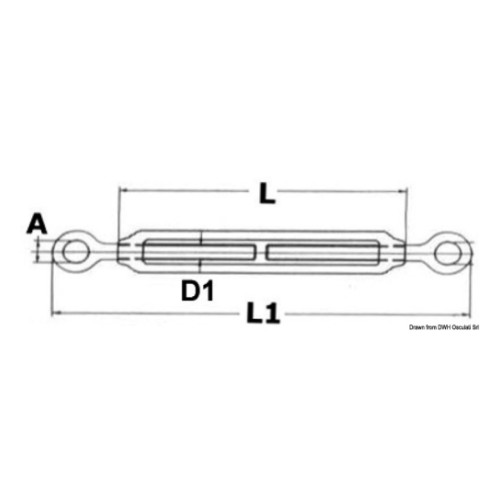

| Thread D1 | L | L1 | A | Work load |
|---|---|---|---|---|
| 4 MA | 60 mm | 100 mm | 7 mm | - kg |
| 5 MA | 70 mm | 120 mm | 8 mm | 160 kg |
| 6 MA | 90 mm | 150 mm | 10 mm | 320 kg |
| 8 MA | 120 mm | 200 mm | 14 mm | 560 kg |
| 10 MA | 150 mm | 240 mm | 16 mm | 880 kg |
